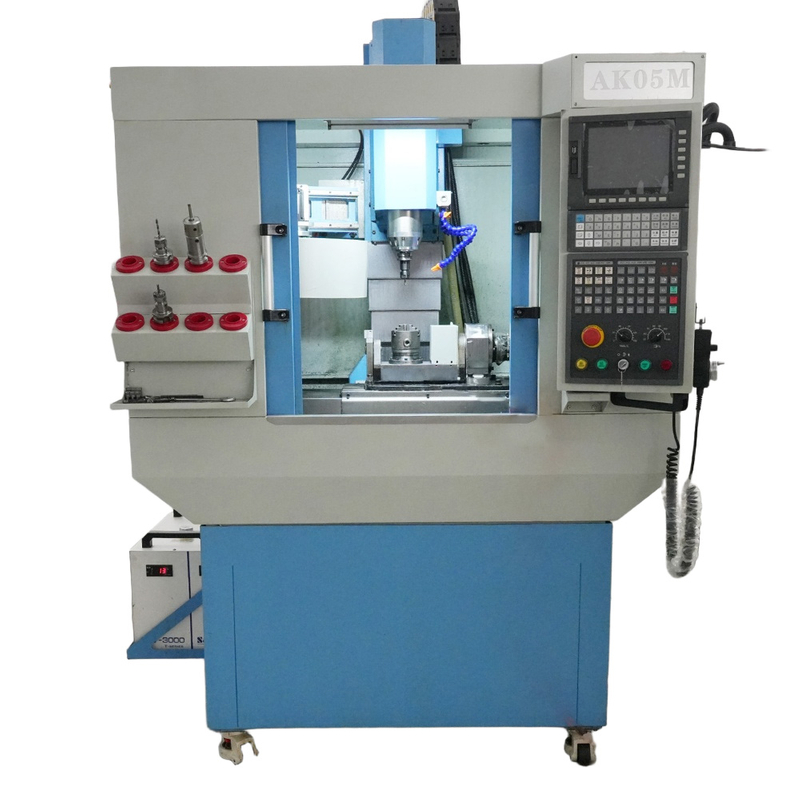

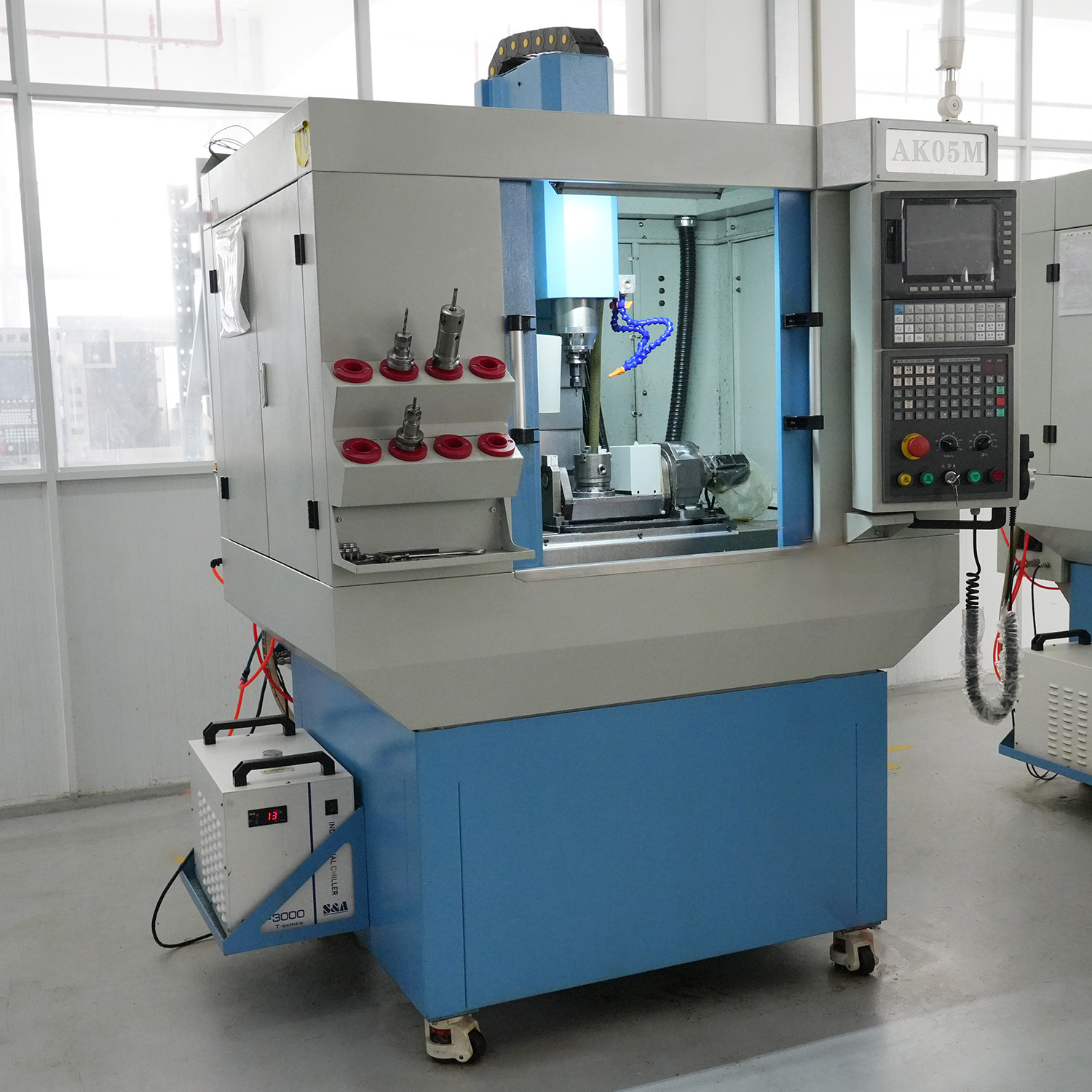

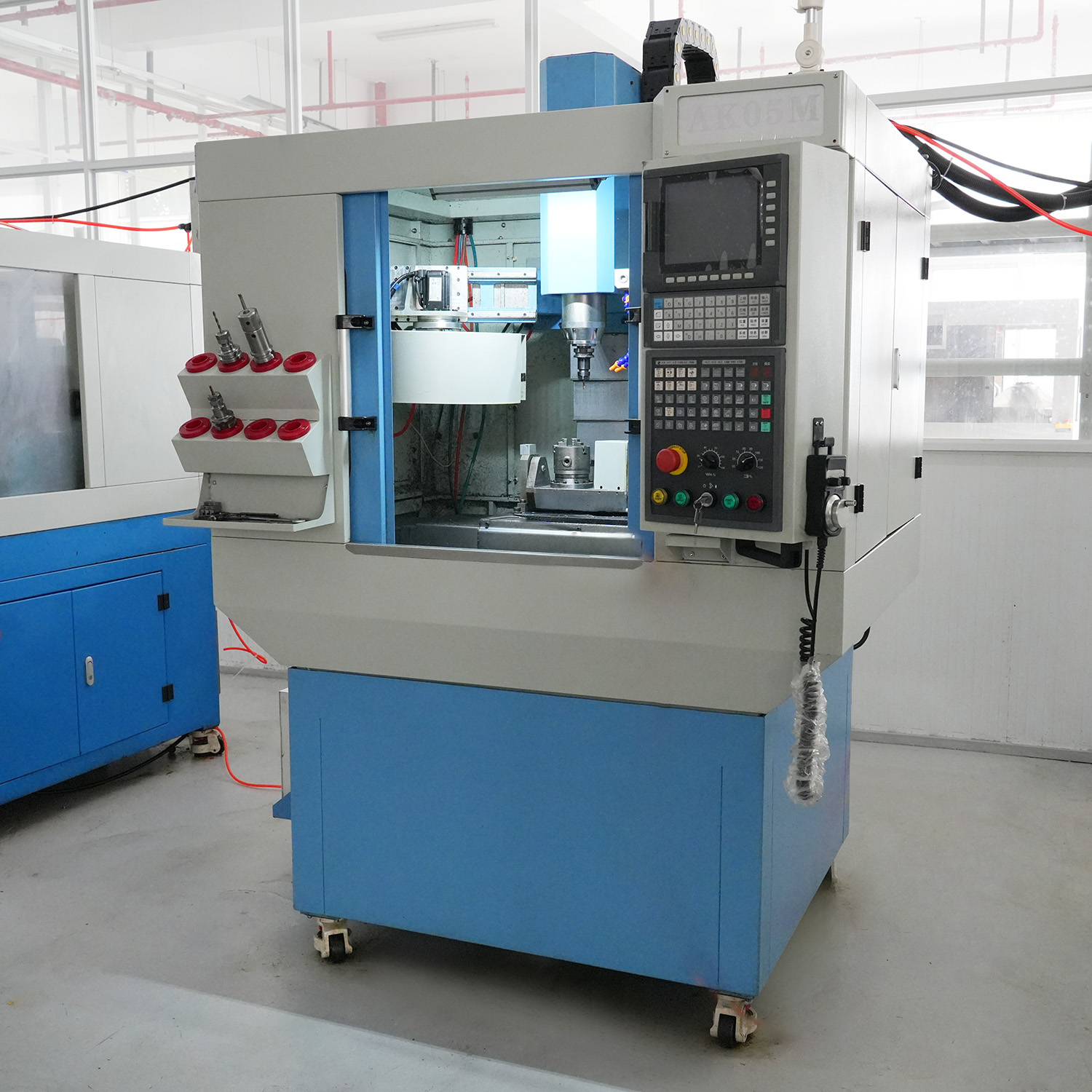

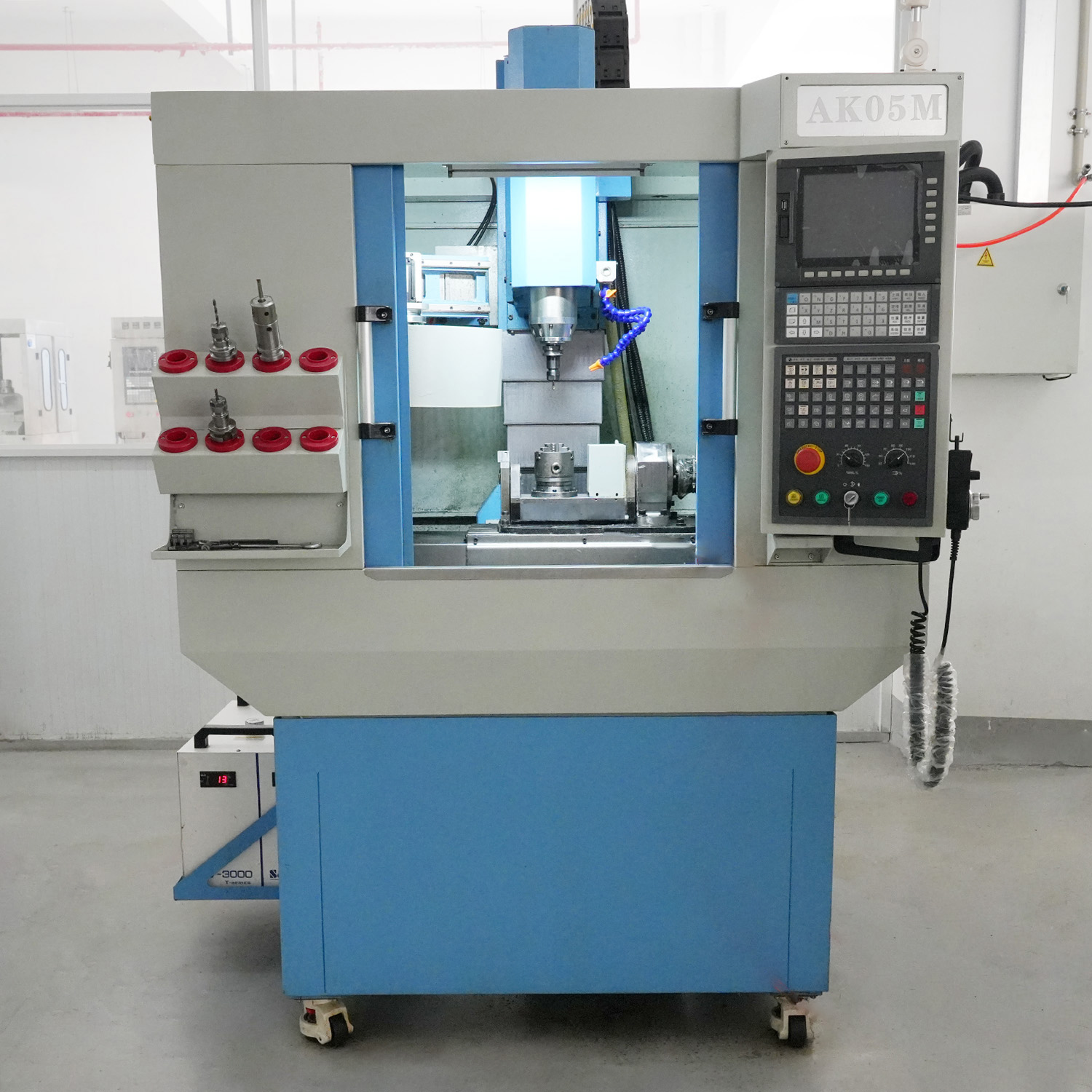

| Specifications | AK05M |
| Motion positioning accuracy | 0.008/0.008/0.006mm |
| Repeat positioning accuracy | 0.006/0.006/0.005mm |
| X/Y/Z axis working travel | 320/250/350 |
| Workbench size | 540x250mm |
| Maximum work load | 10kg |
| Main spindle maximum speed | 18000rpm/24000/32000rpm （Optional） |
| Tool holder specification | BT30 |
| Tool magazine capacity | 10 (disc type） |
| X/Y/Z axis rapid speed | 15m/min |
| Maximum cutting feed speed | 10m/min |
| A/C axis working travel | ±100°(A axis)/360°(C axis) |
| A/C axis minimum design value | 0.001°(A axis)/0.001°( axis) |
| Drive system AC servo | AC servo |
| Working voltage Three-phase | 380V/50Hz |
| Air source pressure | ≥0.6Mpa |
| Total weight of the machine tool | 930kg |
| Machine appearance | 1440x1500x2100 |
Introduction:
1. Compact in size with swivel casters, easy to move.

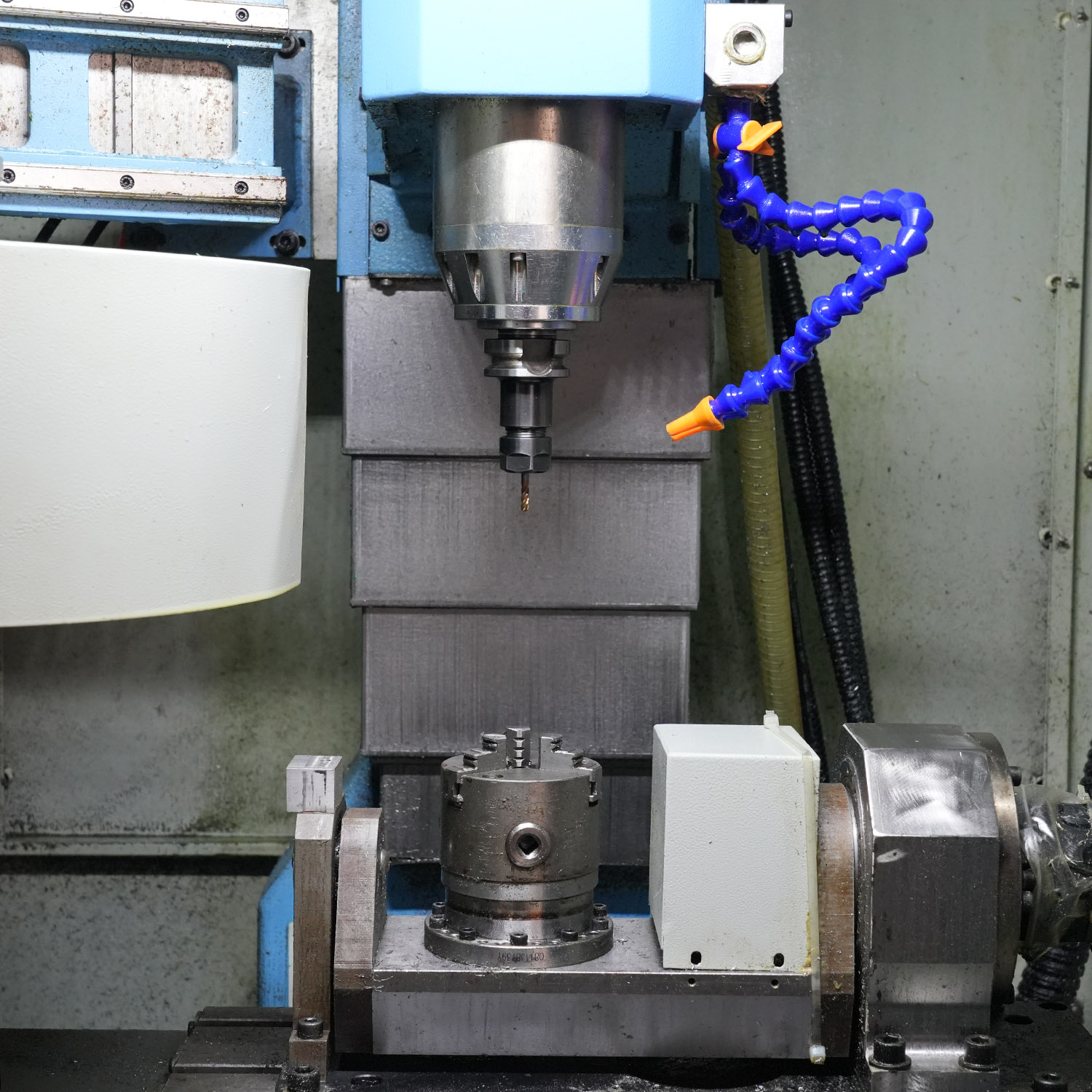

2. Five-axis linkage workbench, higher mach quality, more flexible and not rigid.
3. 10-station rotary automatic tool changer, more accurate and quick tool change, improving work efficiency

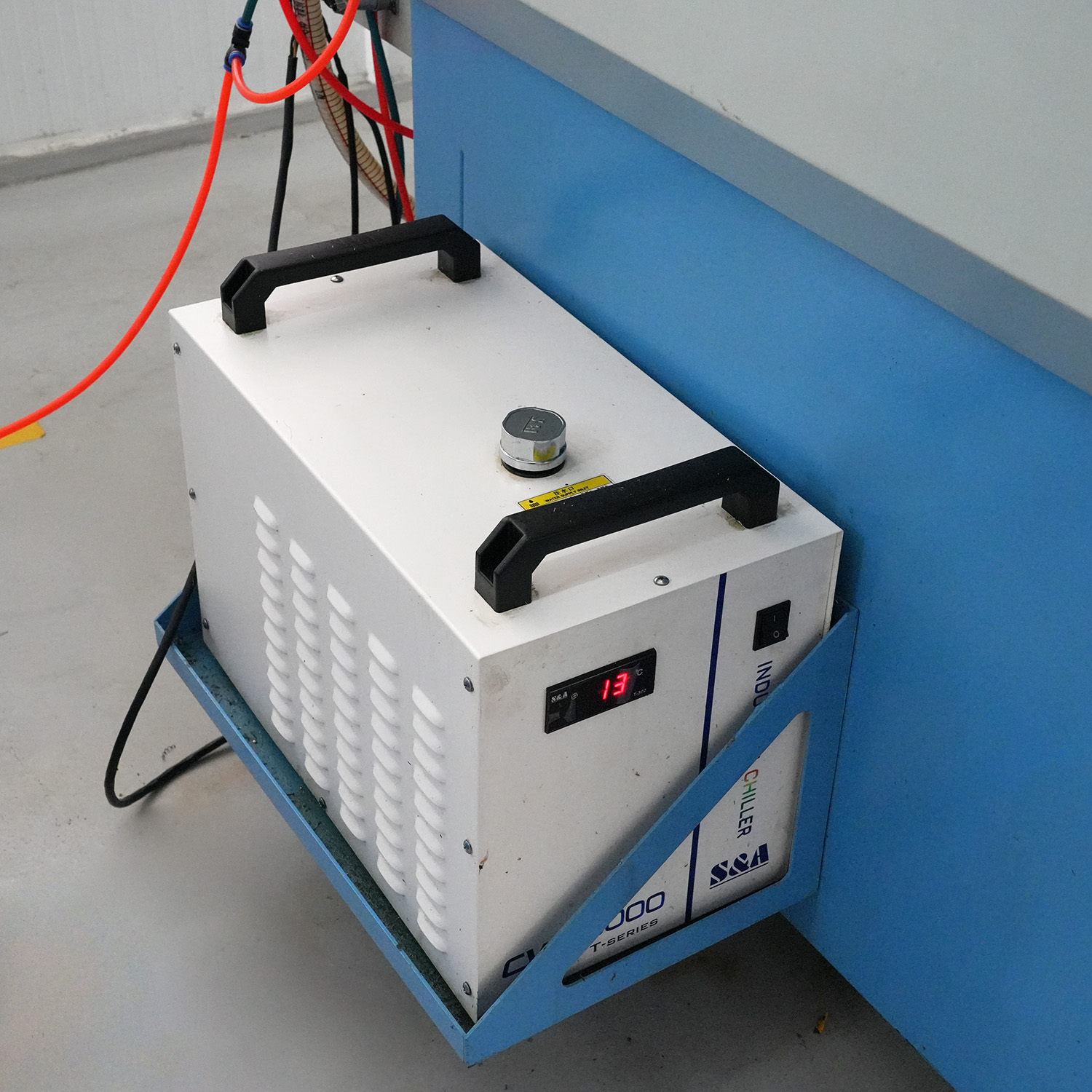

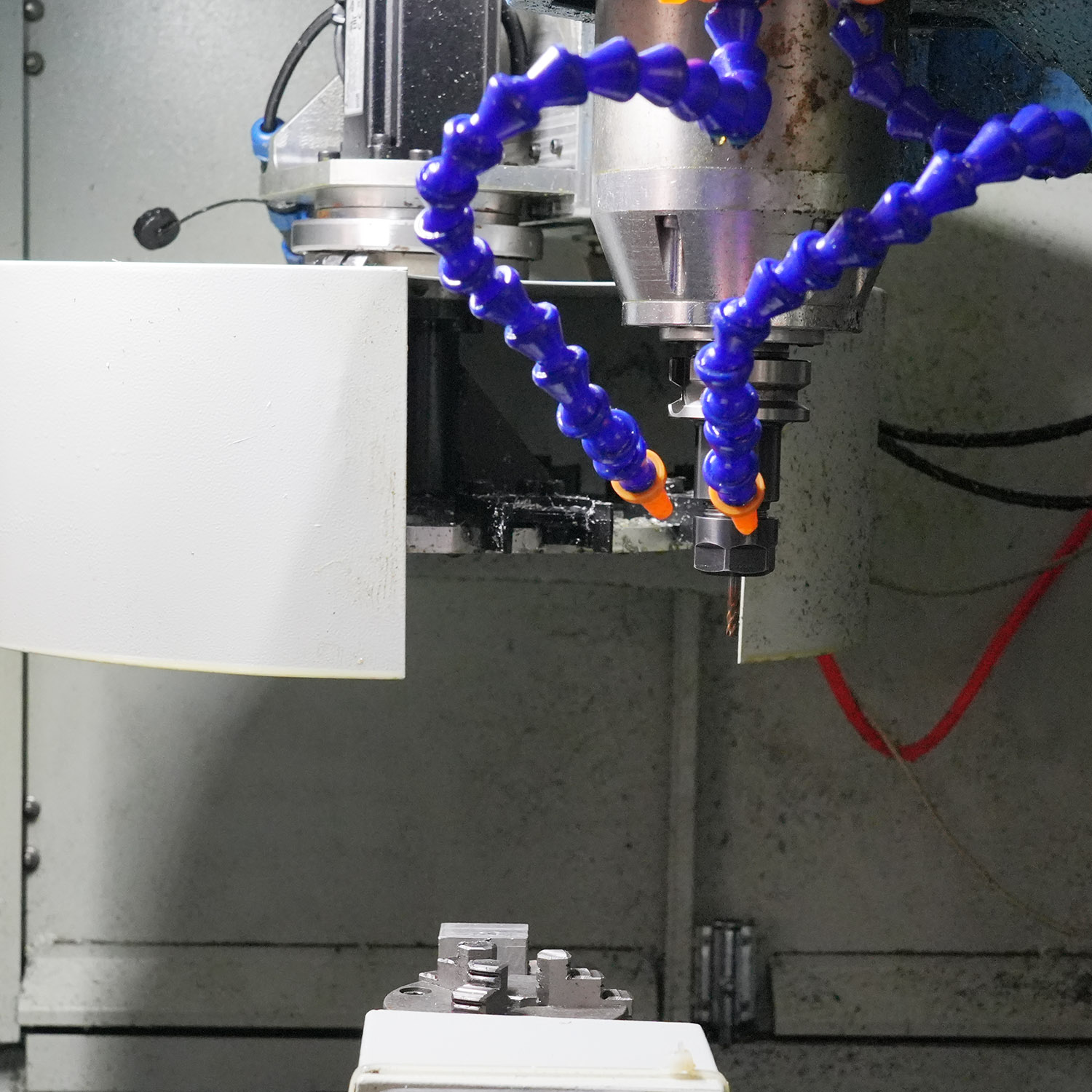

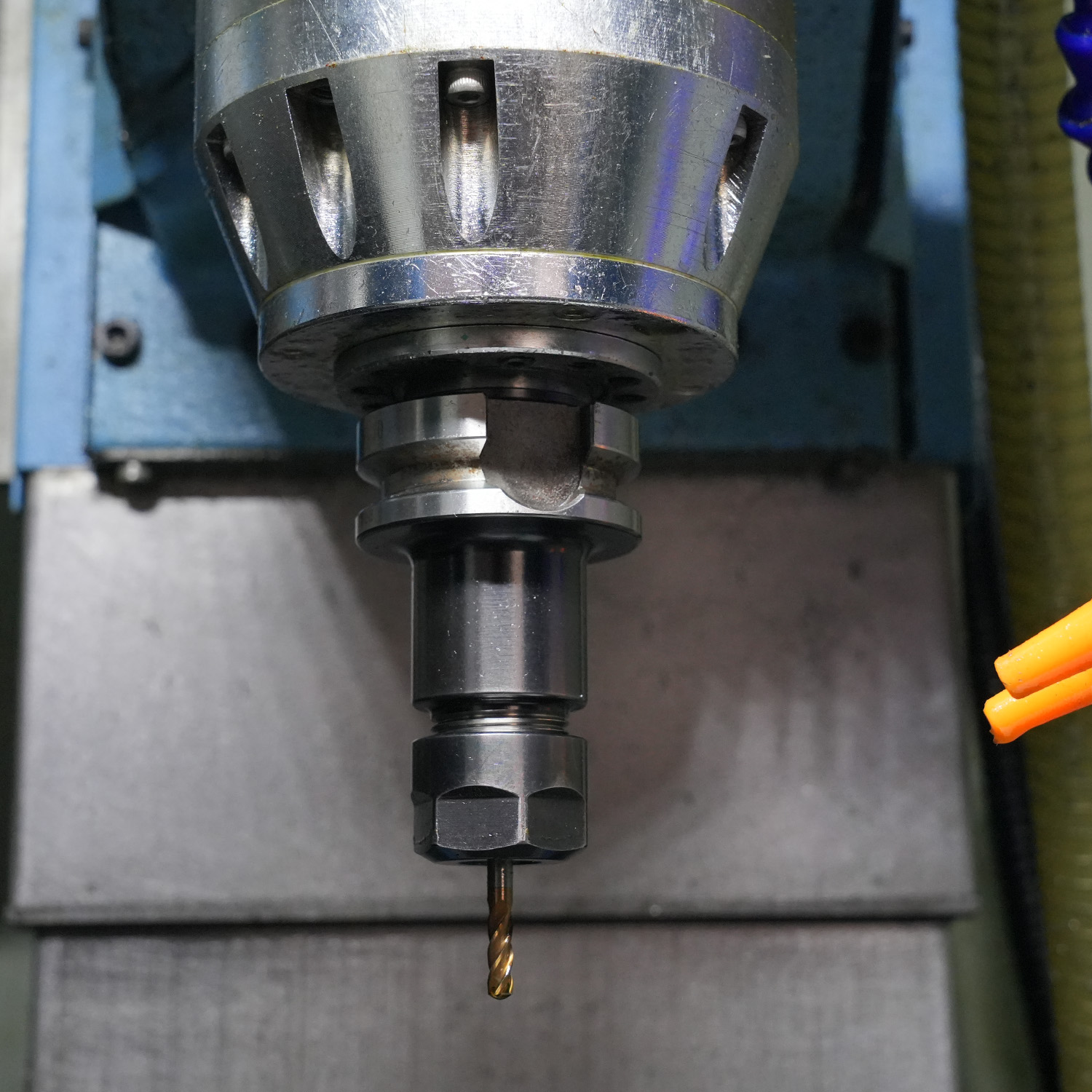

4. 3KW high-precision low-temperature water-cooled spindle is selected as the main spindle, ensuring high-precision machining.
5. The inner wall and bottom of the workbench adopt a funnel-shaped design, which ensures smooth drainage/scraping without waterlogging and is to clean.
 |  |  |
 |  |  |
