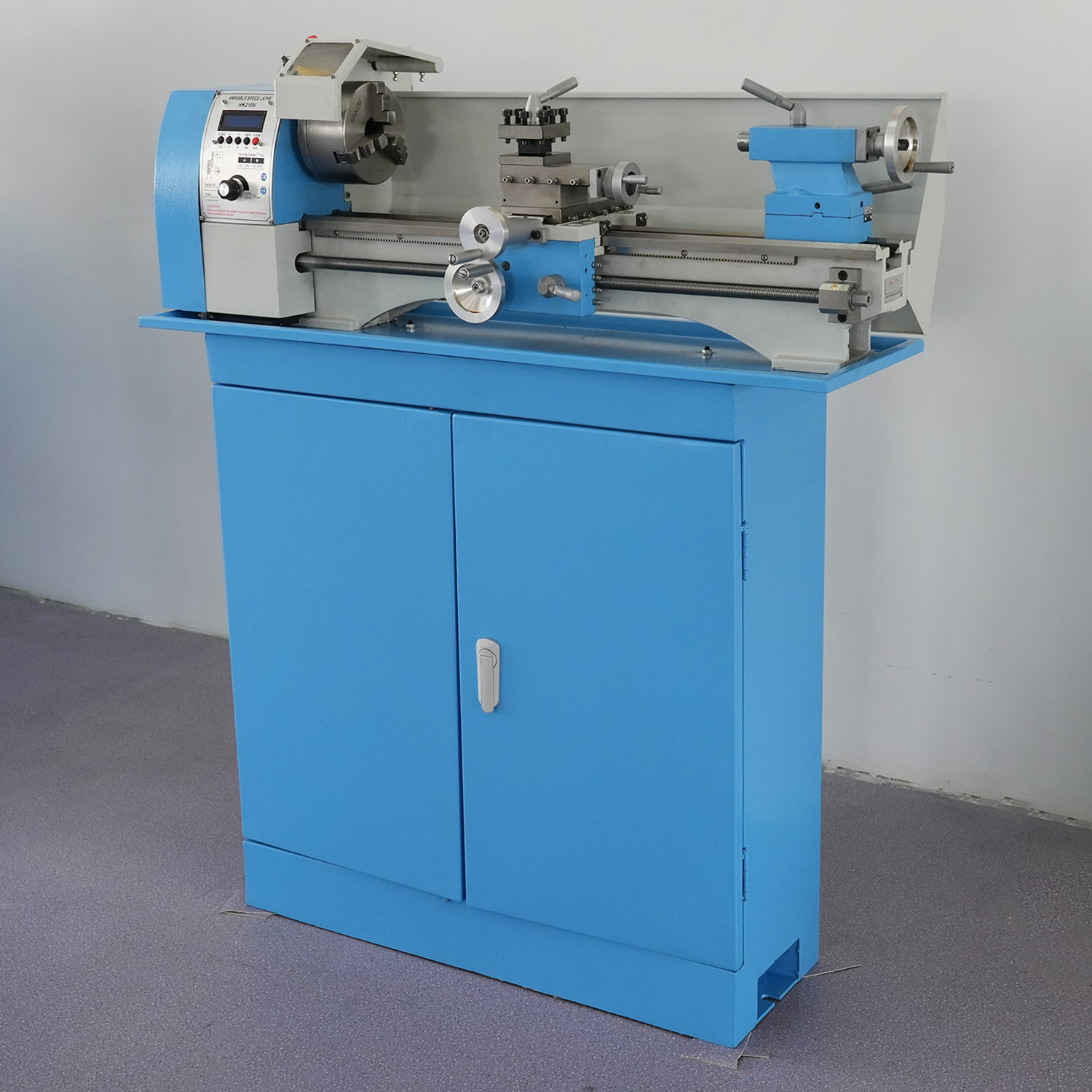

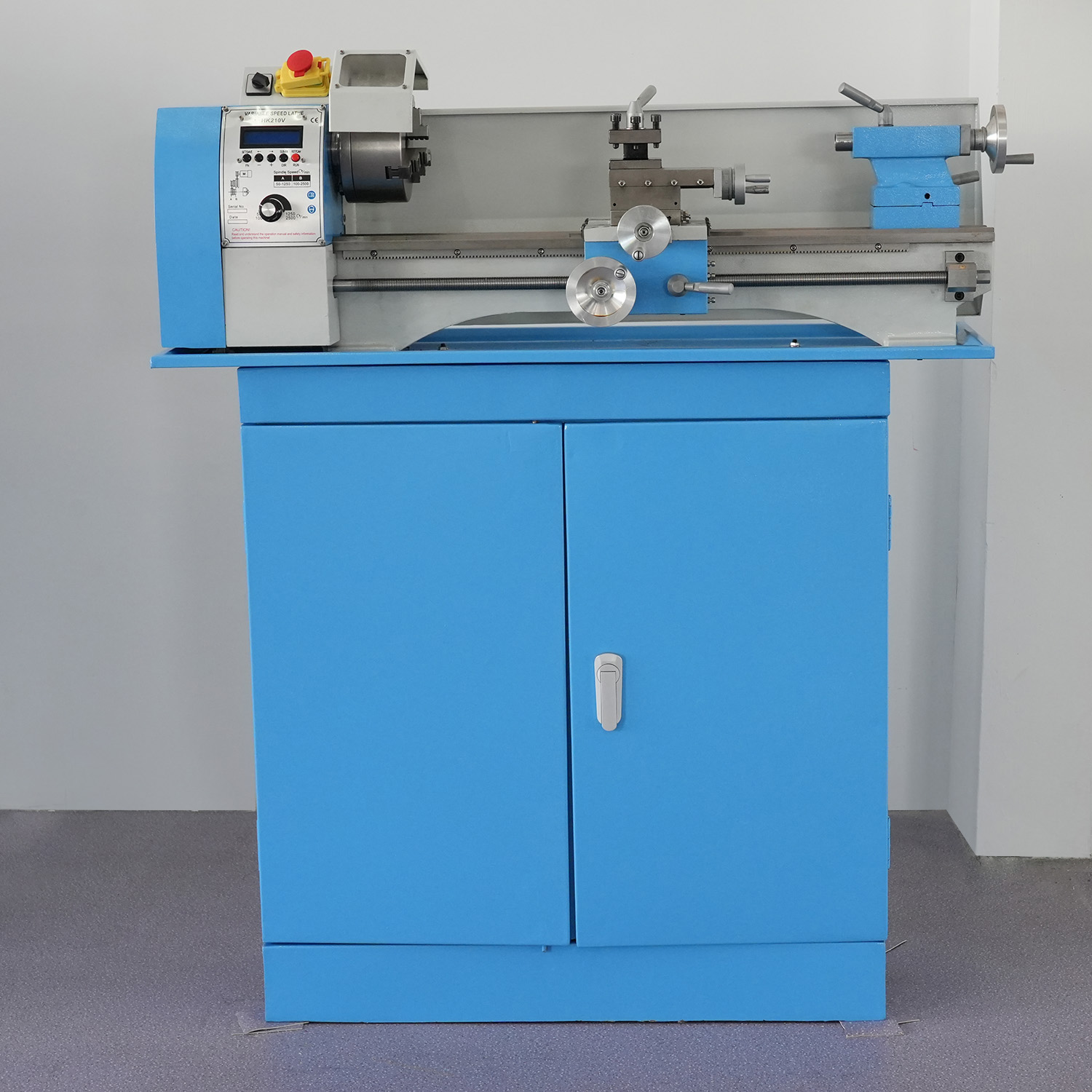

| Specifications | HK210V |
| Swing Over Bed | 210mm |
| Swing Over Cross Slide | 110mm |
| Distance Between Centers | 400mm |
| Width of Bed | 100mm |

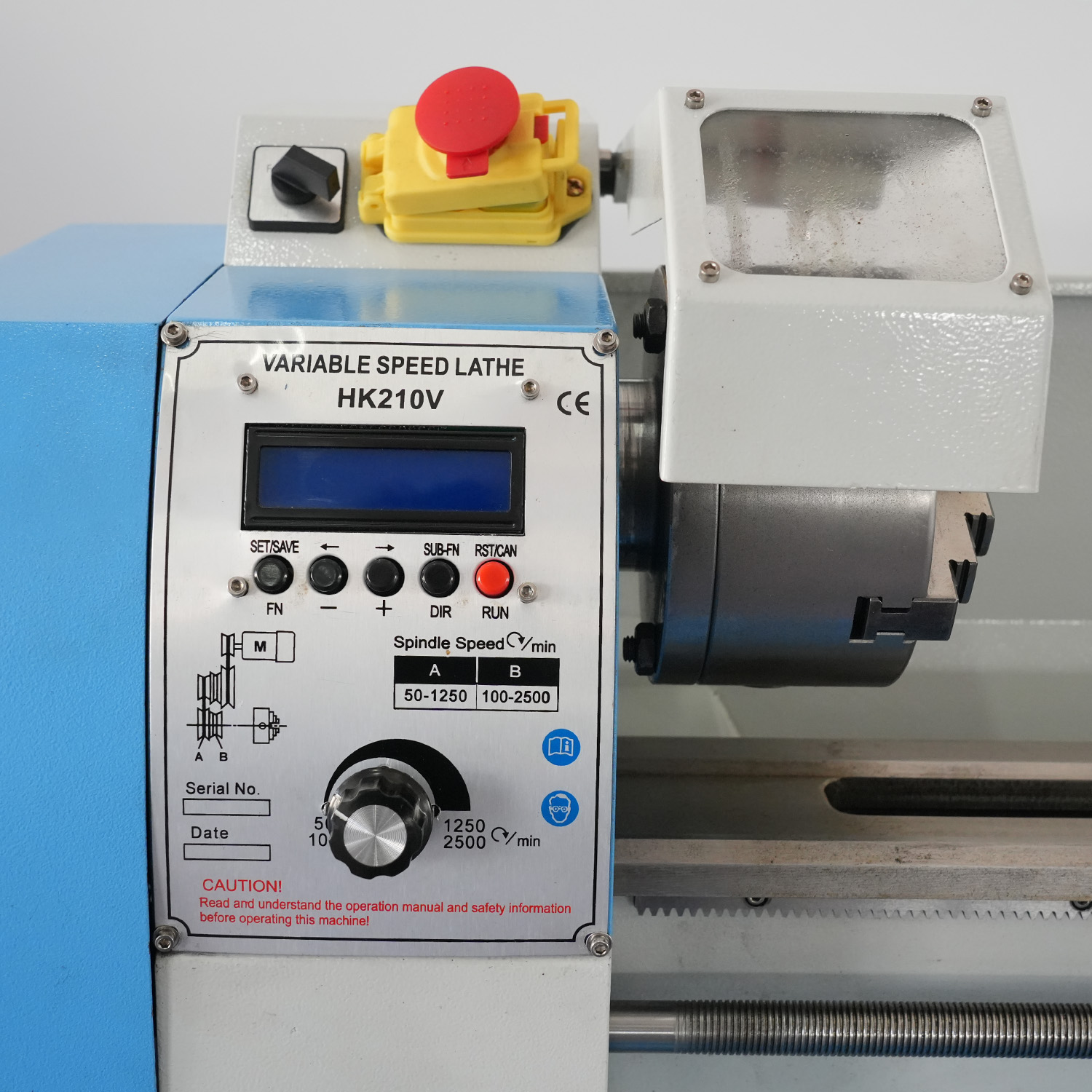

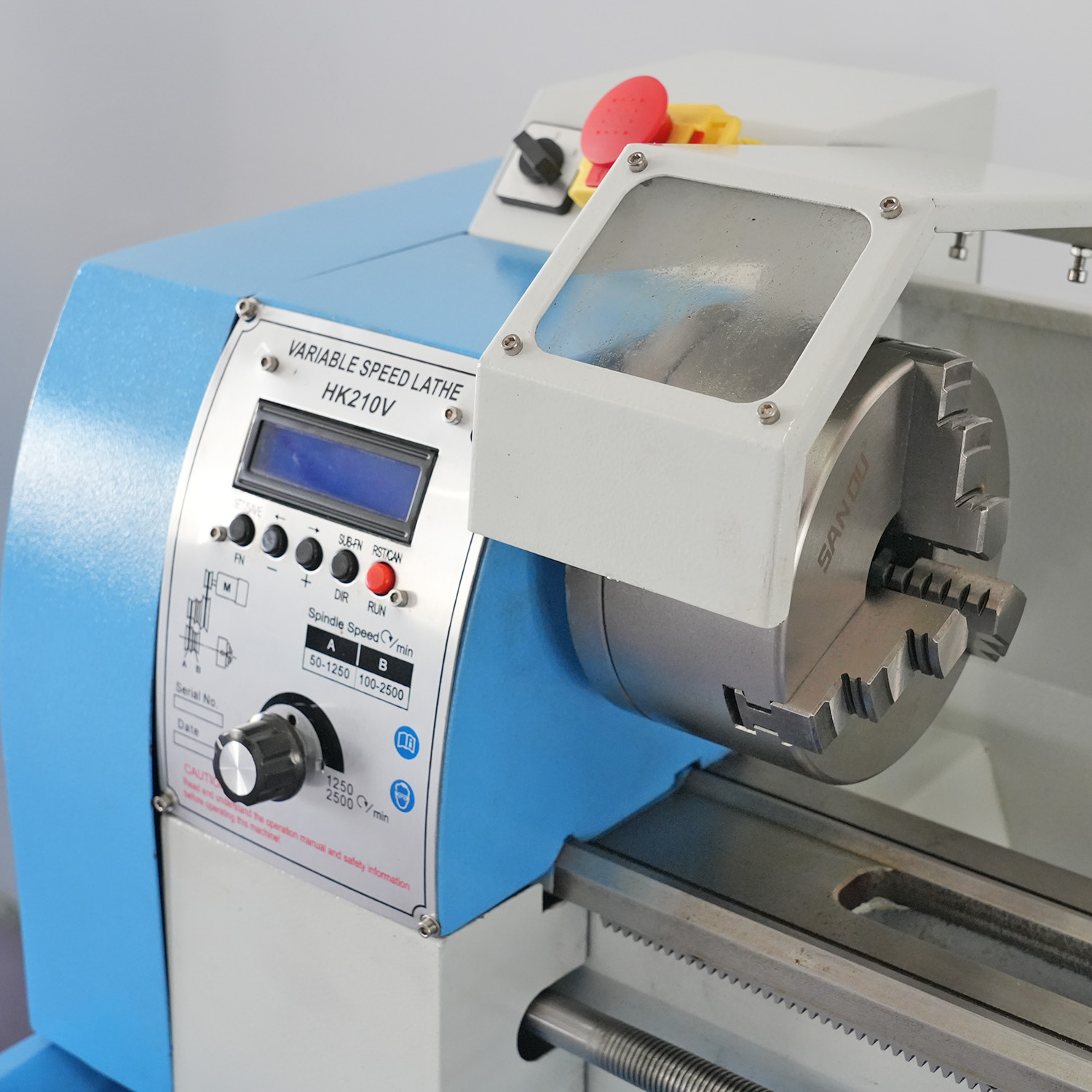

| Headstock |
|
| Hole Through Spindle | 21mm |
| Taper in Spindle Nose | MT3 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds | 50-2500RPM |
| Feeding and Threading |
|
| Number of Metric Threads | 10 |
| Range of Metric Threads | 0.5-3mm |
| Number of Imperial Threads | 8 |
| Range of Imperial Threads | 8-44 T.P.I. |
| Range of Longitudinal Feed | 0.1-0.20mm |

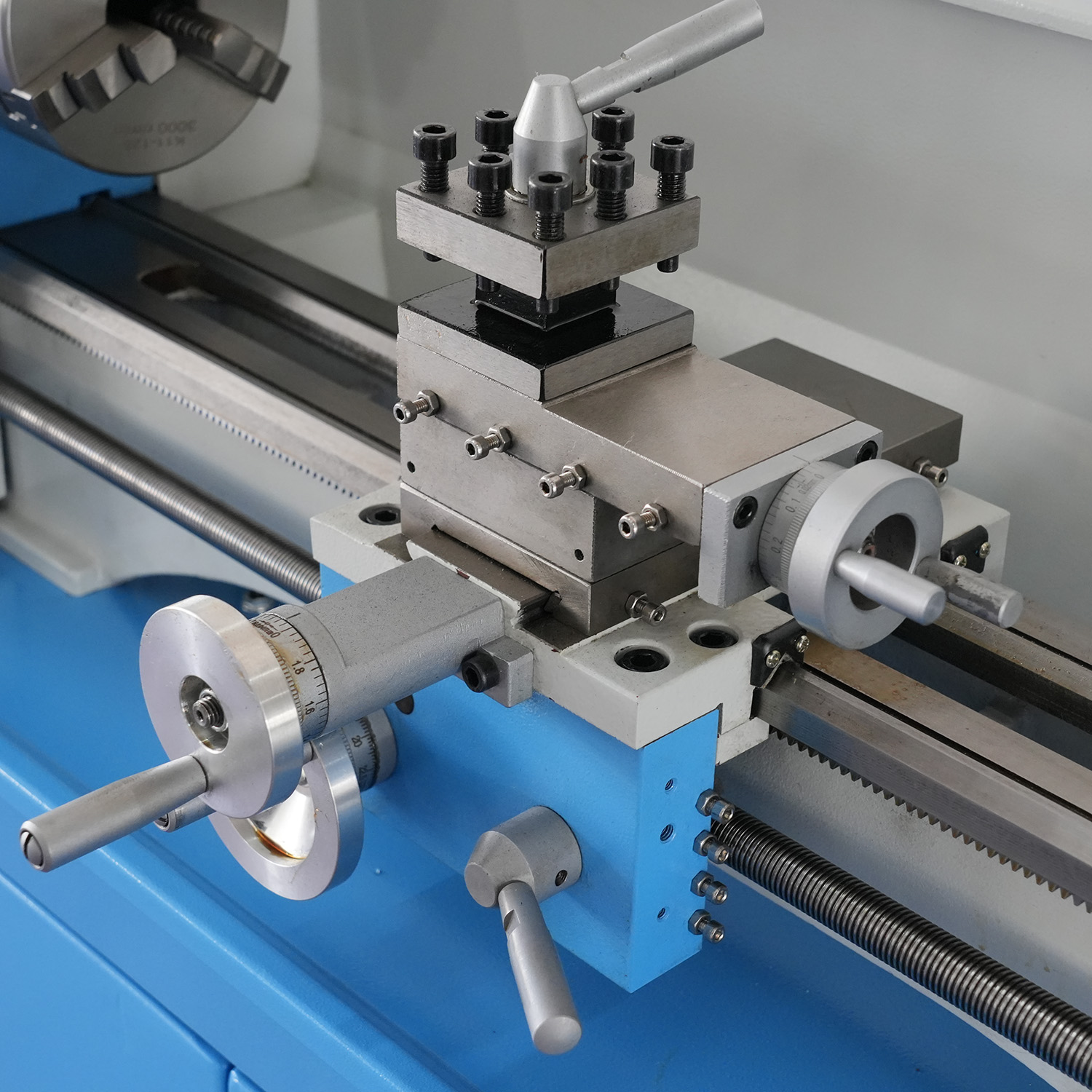

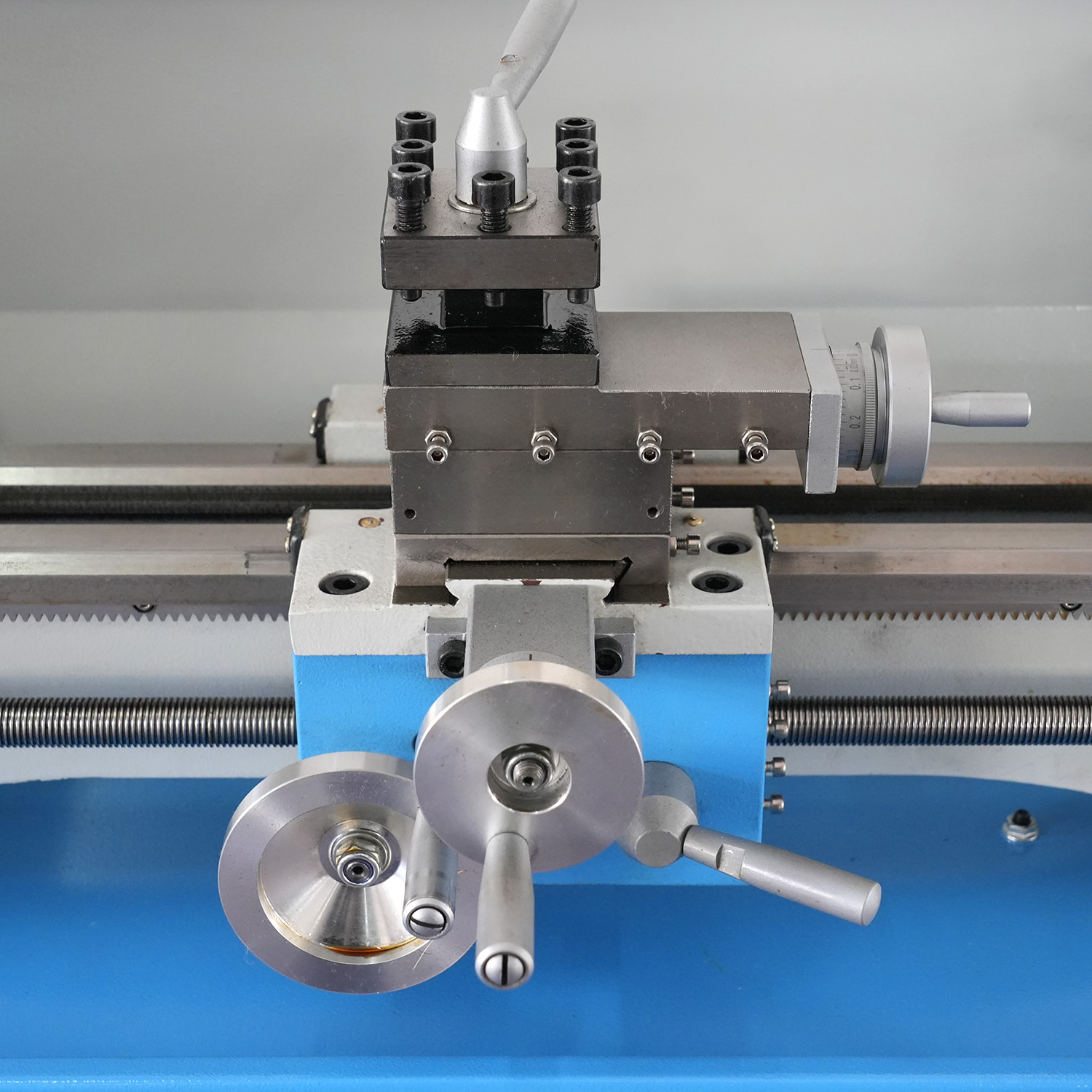

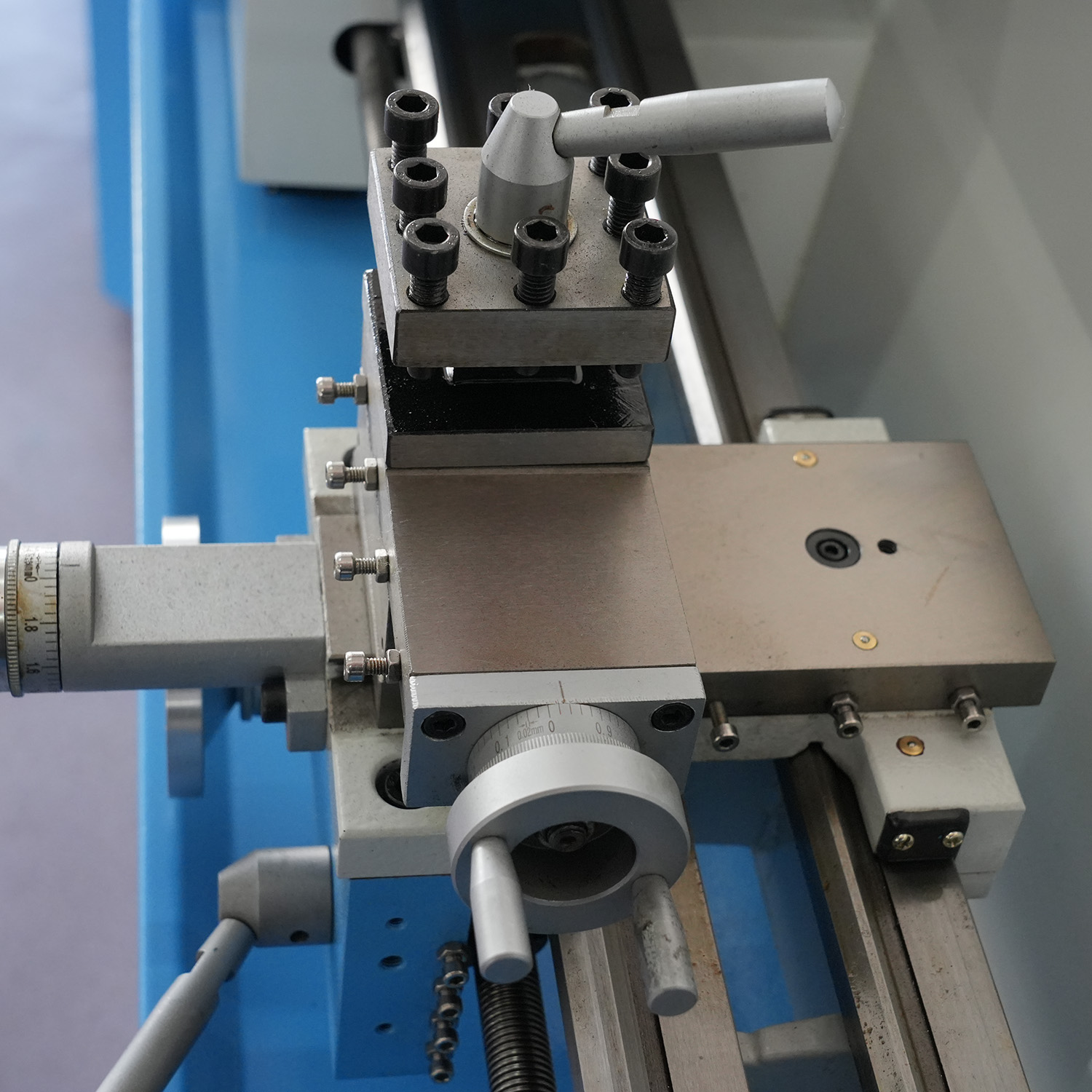

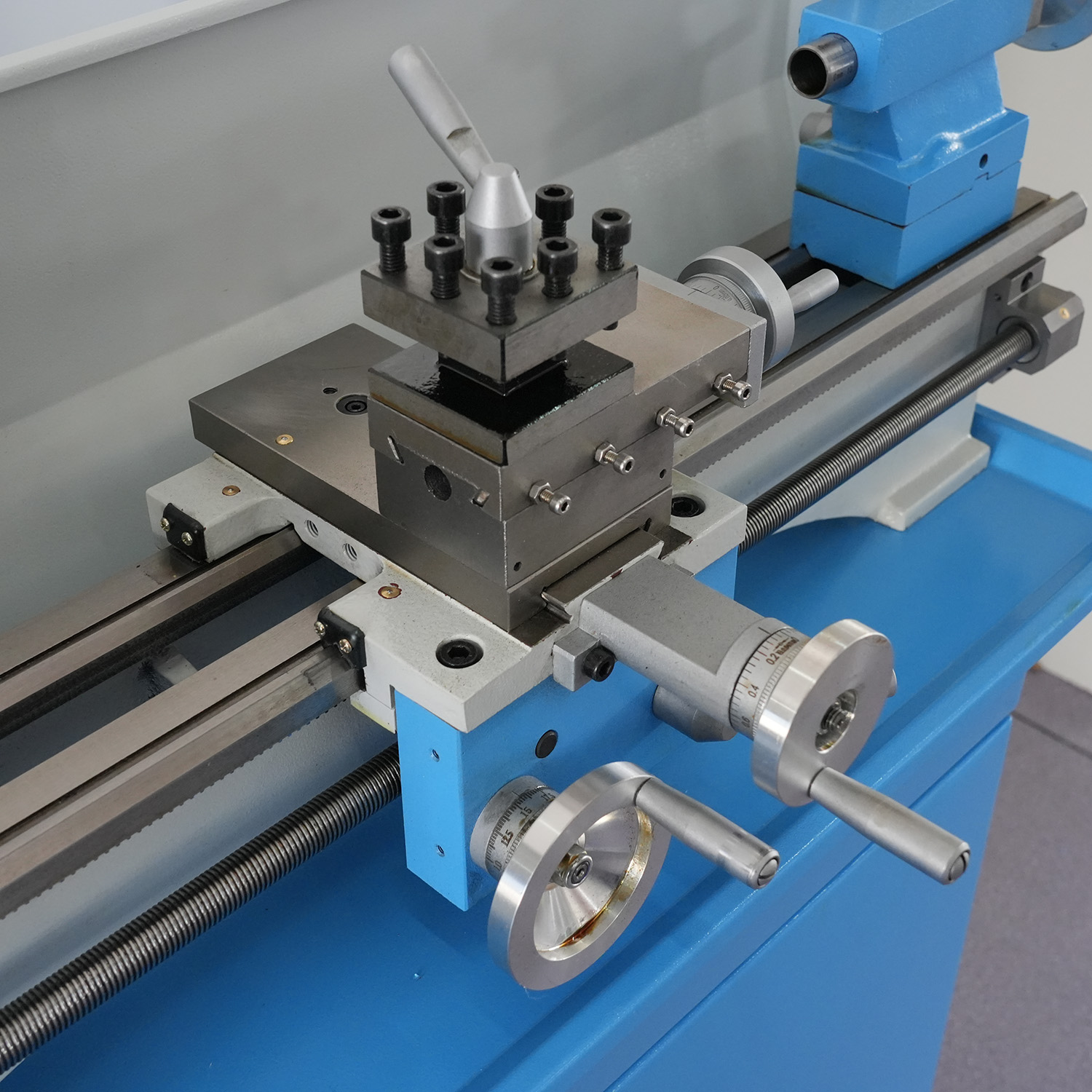

| Compound and Carriage |
|
| Tool Post Type | 4-Way |
| Maximum Compound Slide Travel | 55mm |
| Maximum Cross Slide Travel | 75mm |
| Maximum Carriage Travel | 276mm |

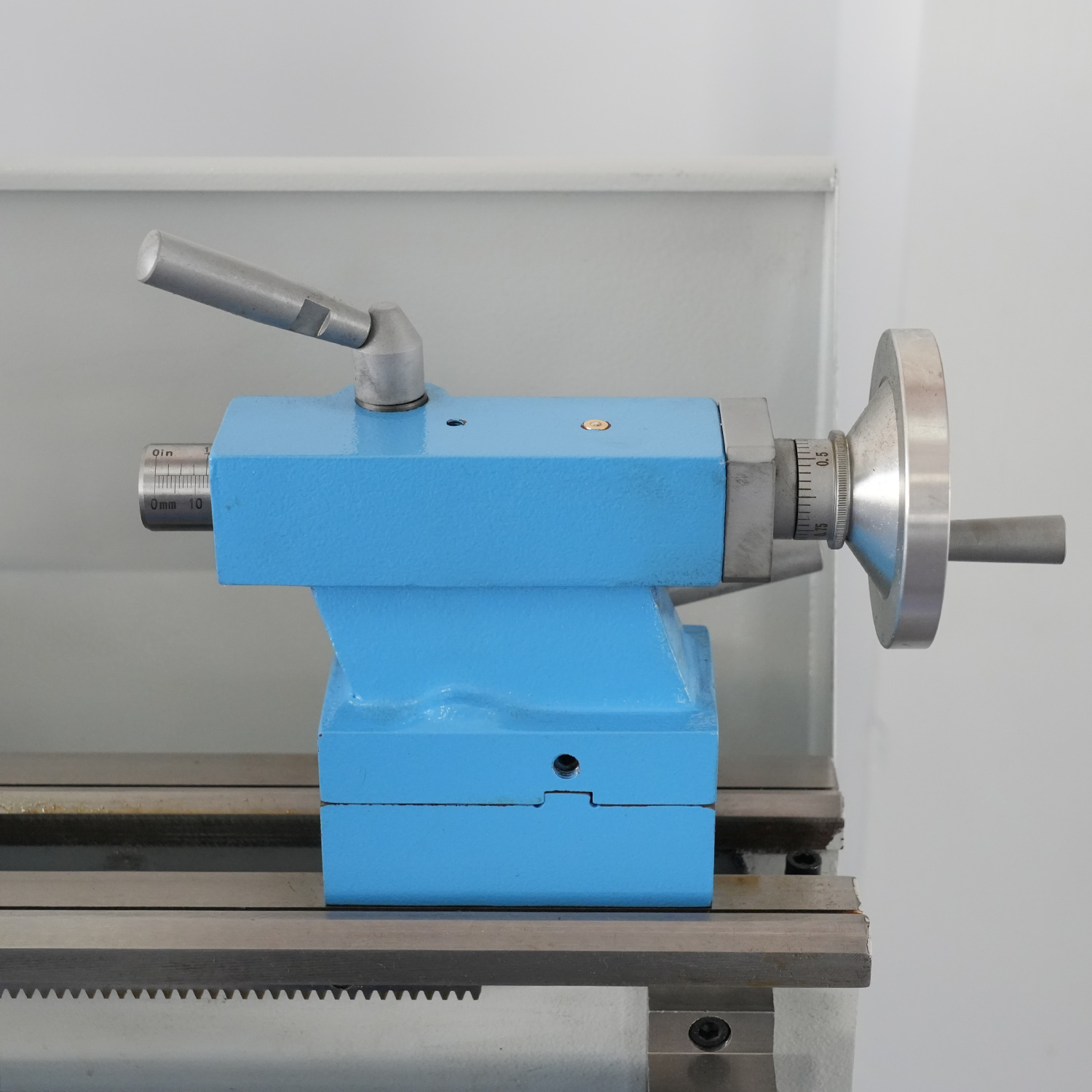

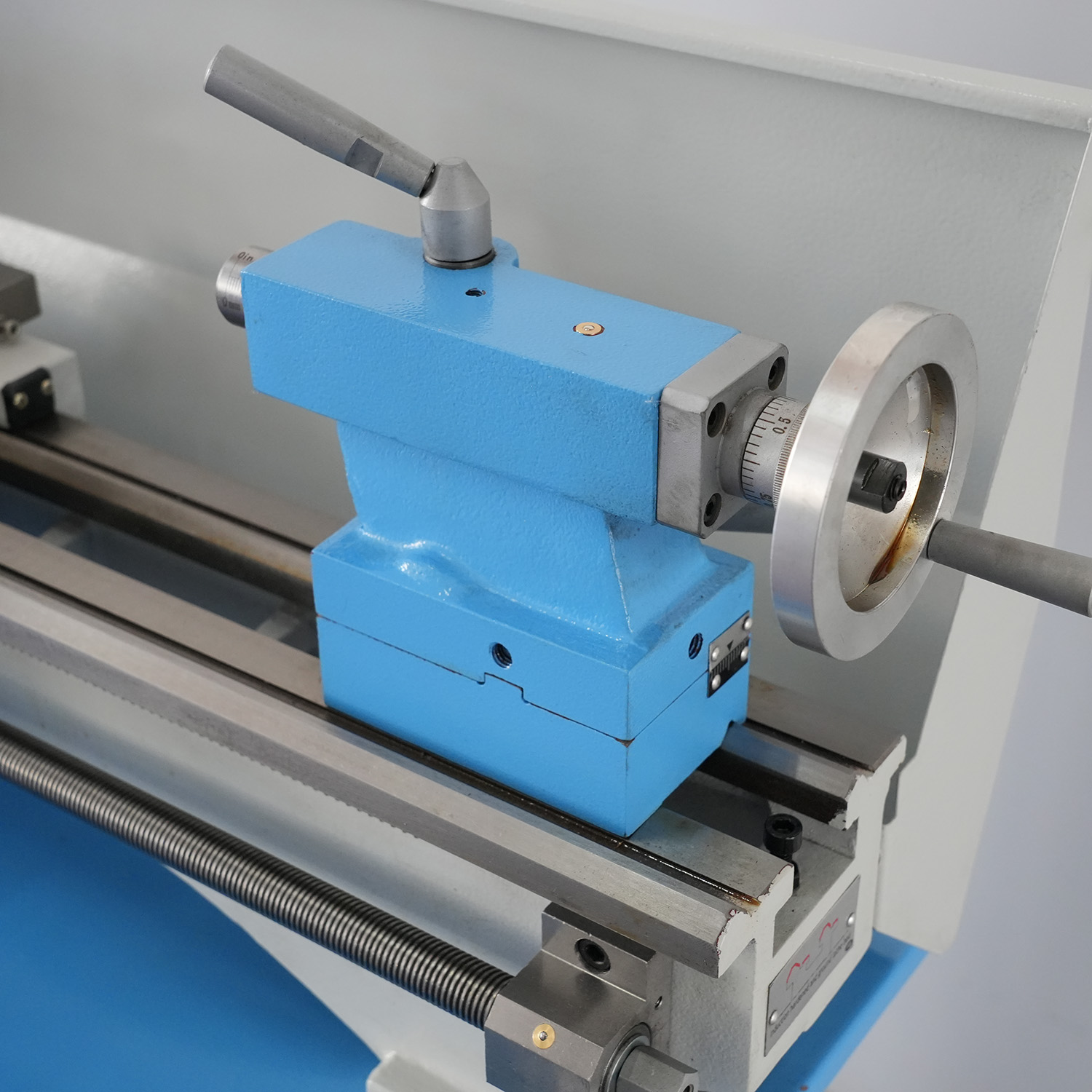

| Tailstock |
|
| Tailstock Spindle Travel | 60mm |
| Taper in Tailstock Spindle | MT2 |
| Miscellaneous |
|
| Main Motor | 600W,230V/1Ph/50Hz |
| Dimension |
|
| Length | 740mm |
| Width | 390mm |
| Height | 370mm |
| Weight | 65KGS |
