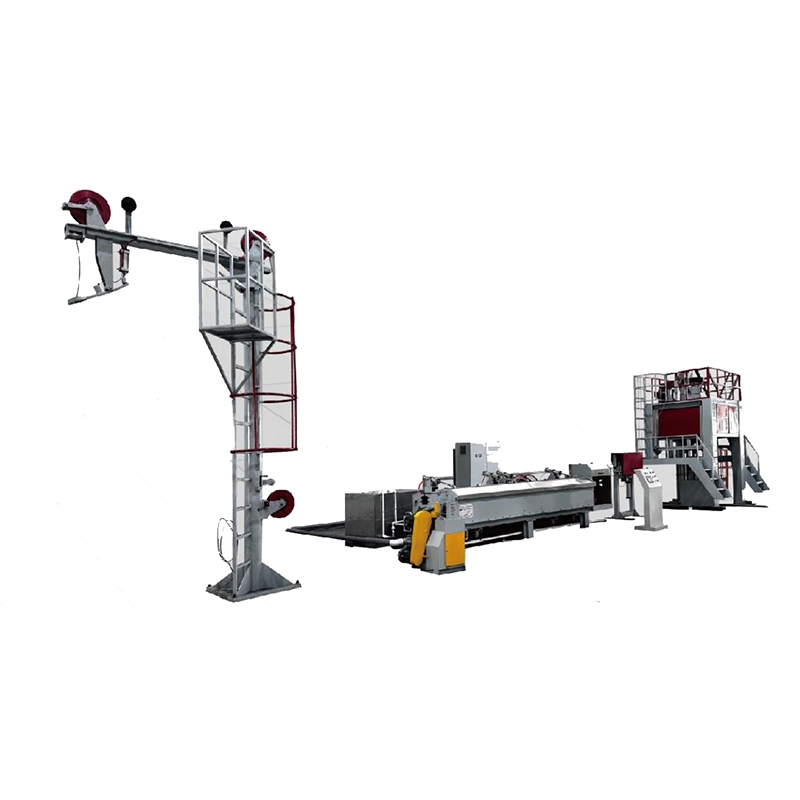

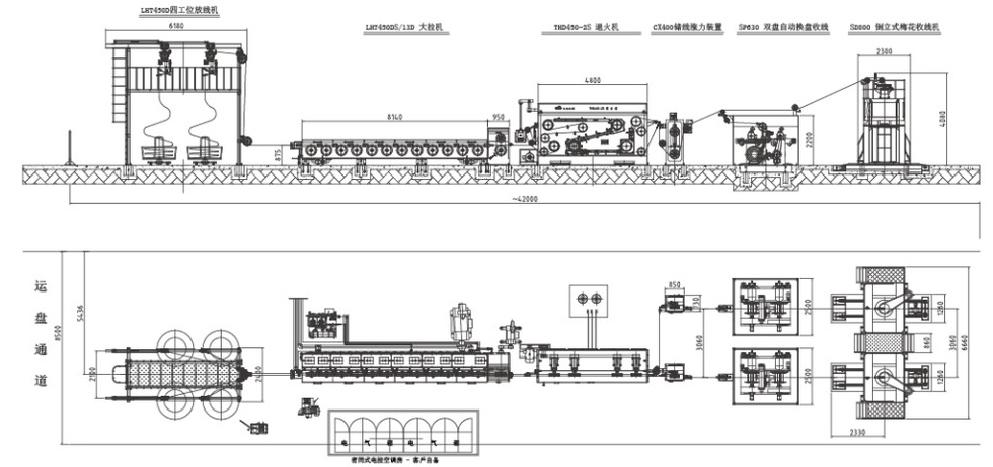

LHT4508~13D Inline Type Large Drawing Unit

• Drawing materials: copper, aluminum wire

• Entry Range: Ф8.0 mm

• The outlet range: Ф3.5 ~ 1.2 mm

• Drawing Speed: 1500~600m/min

• Motor Power: 200+ 45kw (frequency conversion motor)

• Diameter of drawing wheel: ф 450mm

• Annealing configuration: 56V4500A~9000A

• Take-up diameter: ф800mm

• Take-up weight: ~2T/disc

Equipment Characteristics

No slip drawing, independent fixed speed wheel drive, fast die change.
