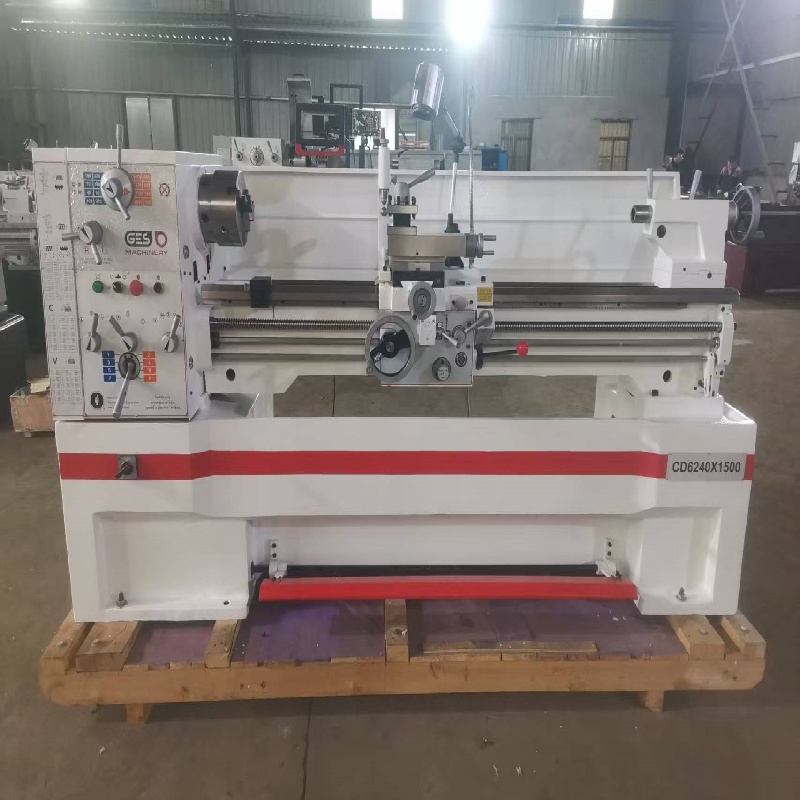

China Conventional Bench Gear Head Lathe CD6240

Swing over bed

410 mm(16”)

Swing over cross slide

255 mm(10”)

Swing in gap diameter

580 mm(23”)

Length of gap

190 mm(7-1/2”)

Admits between

1000 mm(40”)

Center height

205 mm(8”)

Width of bed

250 mm(10”)

Spindle nose

D1-6

Spindle bore

mm(2”)

Taper of spindle bore

No.6 Morse

Range of spindle speed

16 changes, 45-1800 r/min

Compound rest travel

140 mm(5-1/2”)

Cross slide travel

210mm(8-1/4”)

Lead Screw thread

4 T.P.I

Max.Section of tool (WxH)

20×20 mm(13”×16”)

Longitudinal feeds range

0.05~1.7 mm/rev

0.002" ~0.067" /rev

Cross feeds range

0.025~0.85 mm/rev

0.001” ~0.0335" /rev

Threads metric pitches

39 Kinds, 0.2-14 mm

Threads imperial pitches

45 Kinds, 2-72 T.P.I

Threads diametral pitches

21 Kinds, 8-44 DP

Threads module pitches

18 Kinds, 0.3-3.5 MP

Quill diameter

50 mm(2”)

Quill travel

120 mm(4-3/4”)

Quill taper

No.4 Morse

Cross adjustment

±13 mm(±1/2”)

Main motor power

2.2/3.3 kW(3/4.5HP)3PH

Coolant pump power

0.1 kW(1/8HP)3PH

Overall dimension(LxWxH)

194×85×132 cm

Packing size(LxWxH)

206×90×164 cm

Net weight

1160 kg

Gross weight

1350 kg
