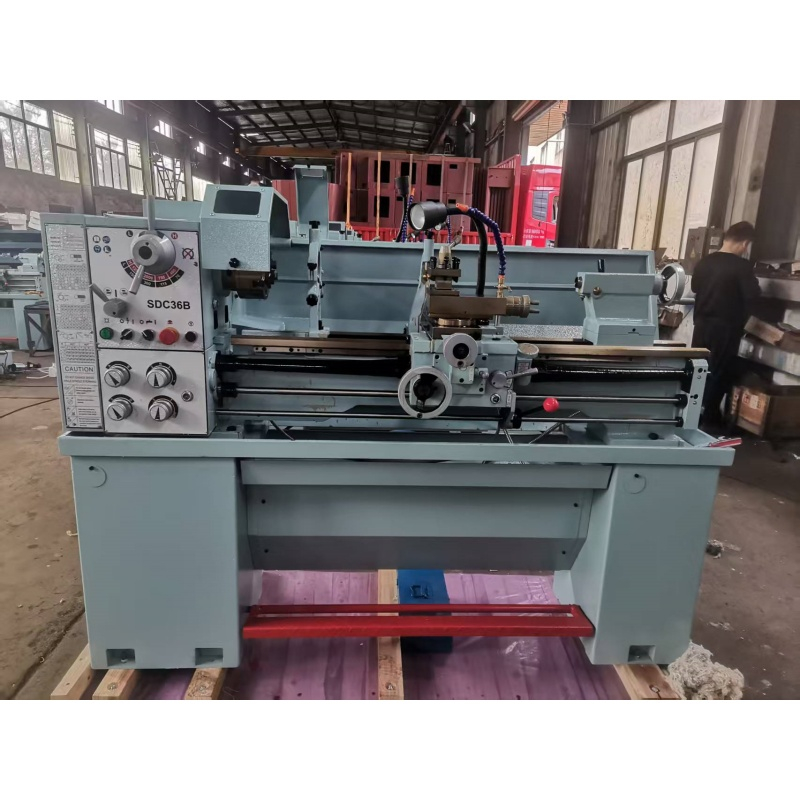

China Conventional Bench Gear Head Lathe SDC36B

Swing over bed

φ320mm(13")

Swing over cross slide

φ198mm(7-25/32")

Swing in gap diameter

φ476mm(18-3/4")

Length of gap

210mm(8-1/4")

Admits between centers

1000mm(40")

Center height

166(6-1/2")

Width of bed

187(7-3/8")

Spindle nose

D1-4

Spindle bore

38mm(1-1/2")

Taper of spindle bore

No.5Morse

Range of spindle speed

8 changes, 70-2000r/min

Compound rest travel

95mm(3-9/16")

Cross slide travel

170mm(6-11/16")

Lead Screw thread

φ22mm(7/8") 3mm or8T.P.I

Max.Section of tool (W脳H)

16mm*16mm(5/8" *5/8")

Longitudinal feeds range

32 Kinds,002~0.392mm/rev; 32 Kinds,.052"~0.548" /rev

Cross feeds range

32 Kinds,014~0.380mm/rev; 32 Kinds,0007"~0.0177" /rev

Threads metric pitches

26 Kinds,0.4~4.8mm

Threads imperial pitches

34 Kinds,4-56 T.P.I

Threads diametral pitches

Threads module pitches

Quill diameter

32mm(1-1/4")

Quill travel

100mm(3-15/16")

Quill taper

No.3Morse

Main motor power

1.5kW(2HP)3PH

Coolant pump power

0.1kW(1/8HP)3PH

Overall dimension(L*W*H)

193*76*150cm

Packing size(L*W*H)

Net weight

495kg

Gross weight

kg
