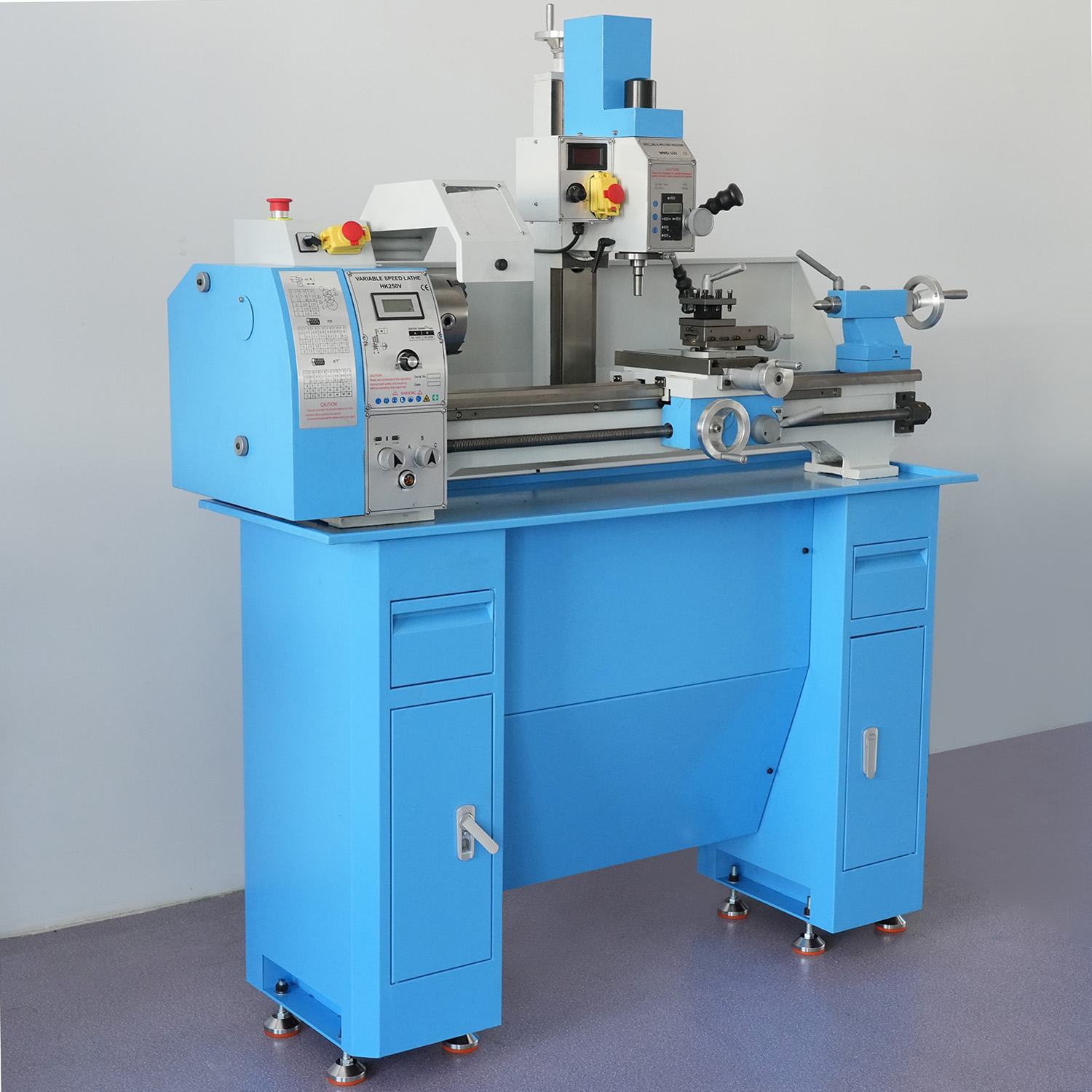

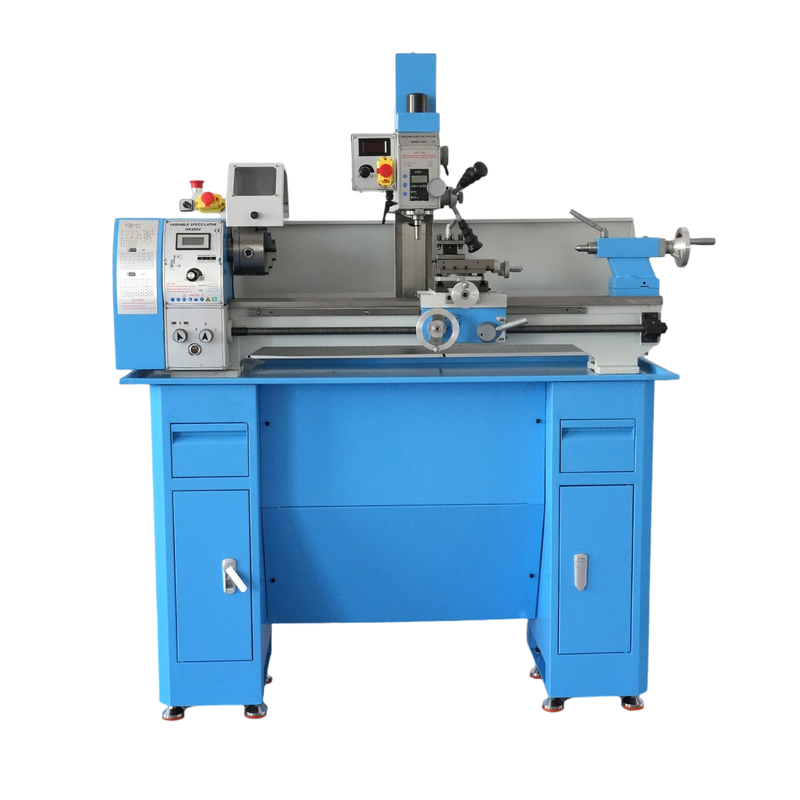

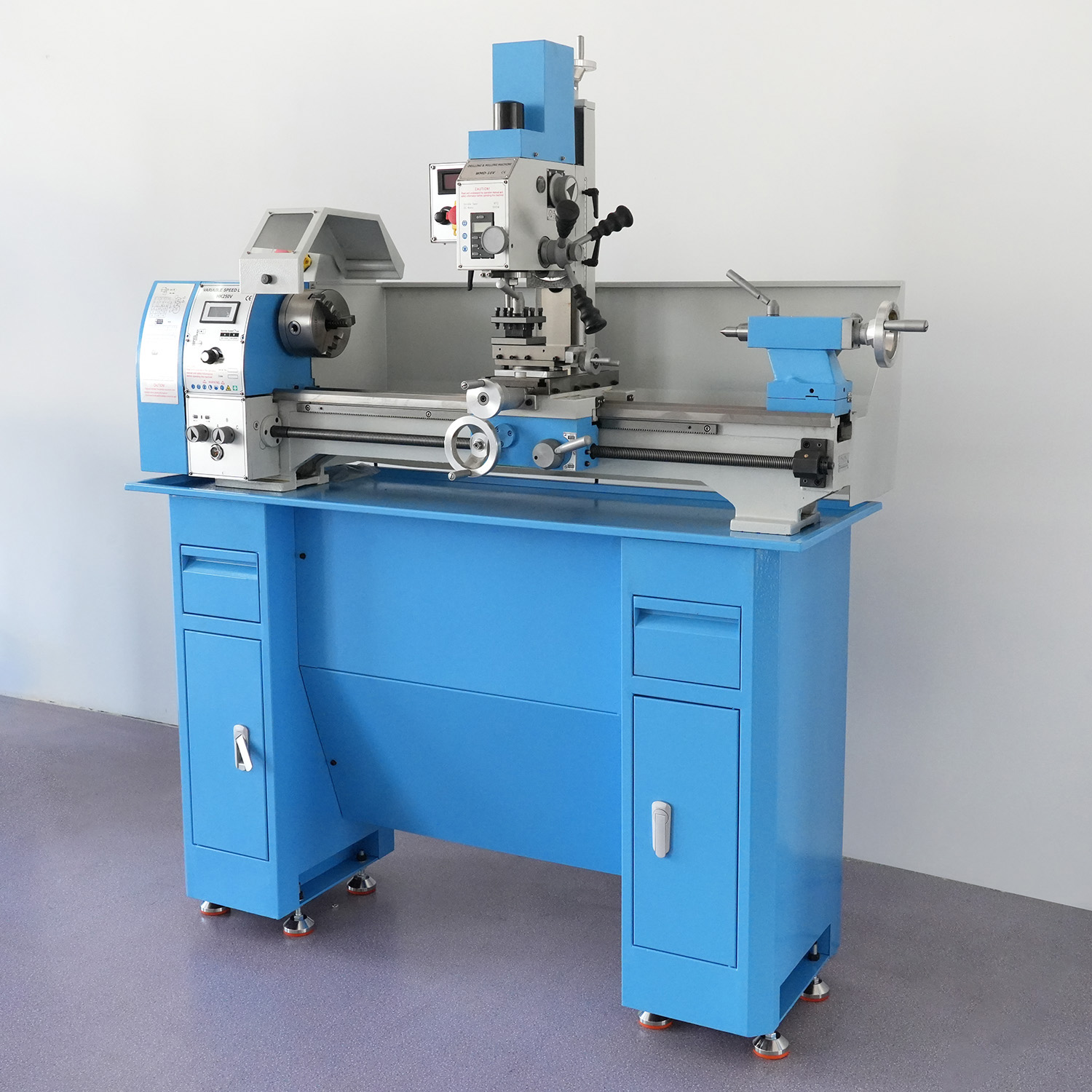

| Specifications | WMP250V |
| Capacities | |
| Swing Over Bed | 250mm |
| Swing Over Cross Slide | 150mm |
| Distance Between Centers | 550mm |
| Width of Bed | 135mm |

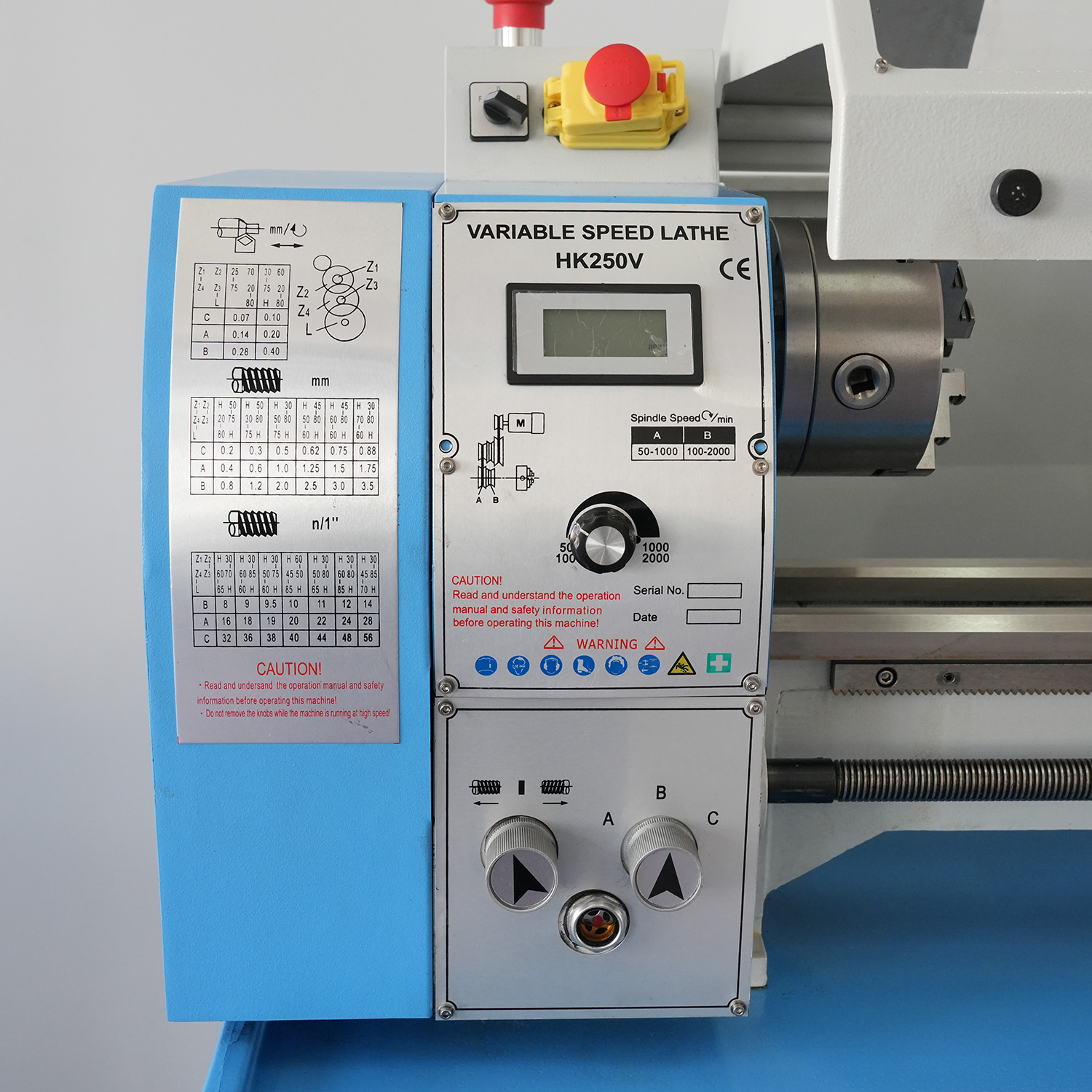

| Headstock | |
| Hole Through Spindle | 26mm |
| Taper in Spindle Nose | MT4 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds | 50-2500RPM |
| Feeding and Threading: | |
| Number of Metric Threads | 18 |
| Range of Metric Threads | 0.2-3.5mm |
| Number of Imperial Threads | 21 |
| Range of Imperial Threads | 8-56 T.P.I. |
| Range of Longitudinal Feed | 0.07-0.20mm |

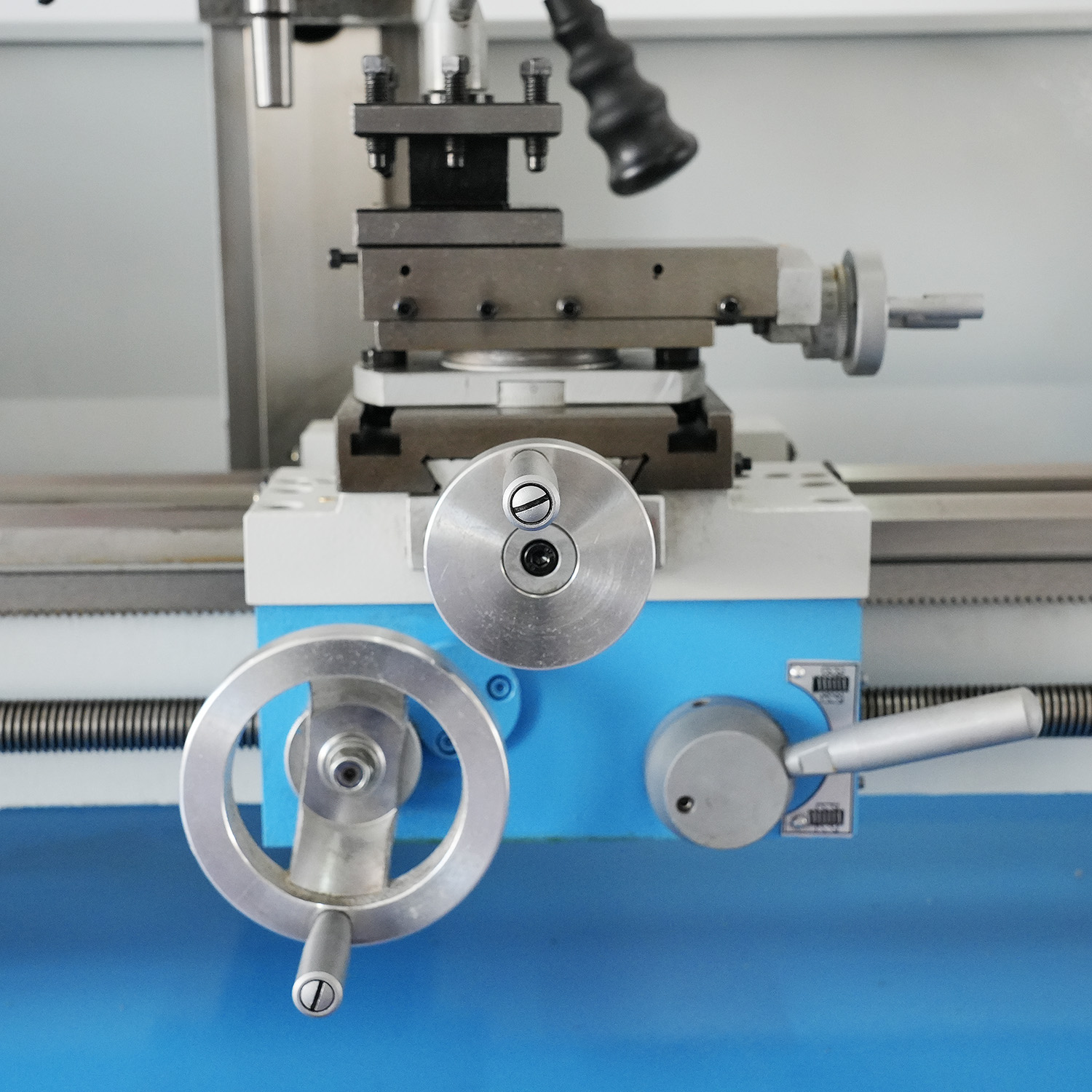

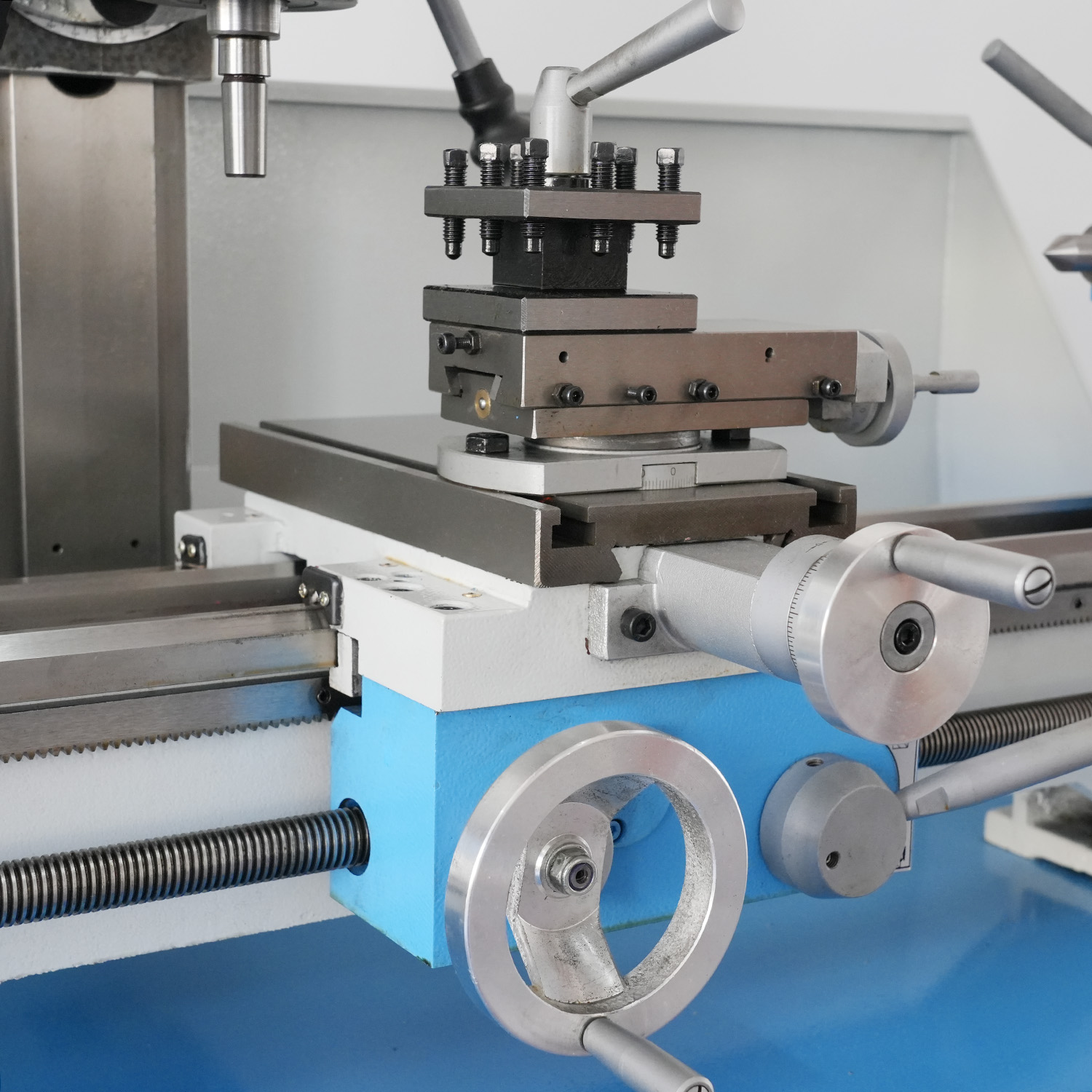

| Compound and Carriage | |
| Tool Post Type | 4-Way |
| Maximum Compound Slide Travel | 70mm |
| Maximum Cross Slide Travel | 115mm |
| Maximum Carriage Travel | 450mm |

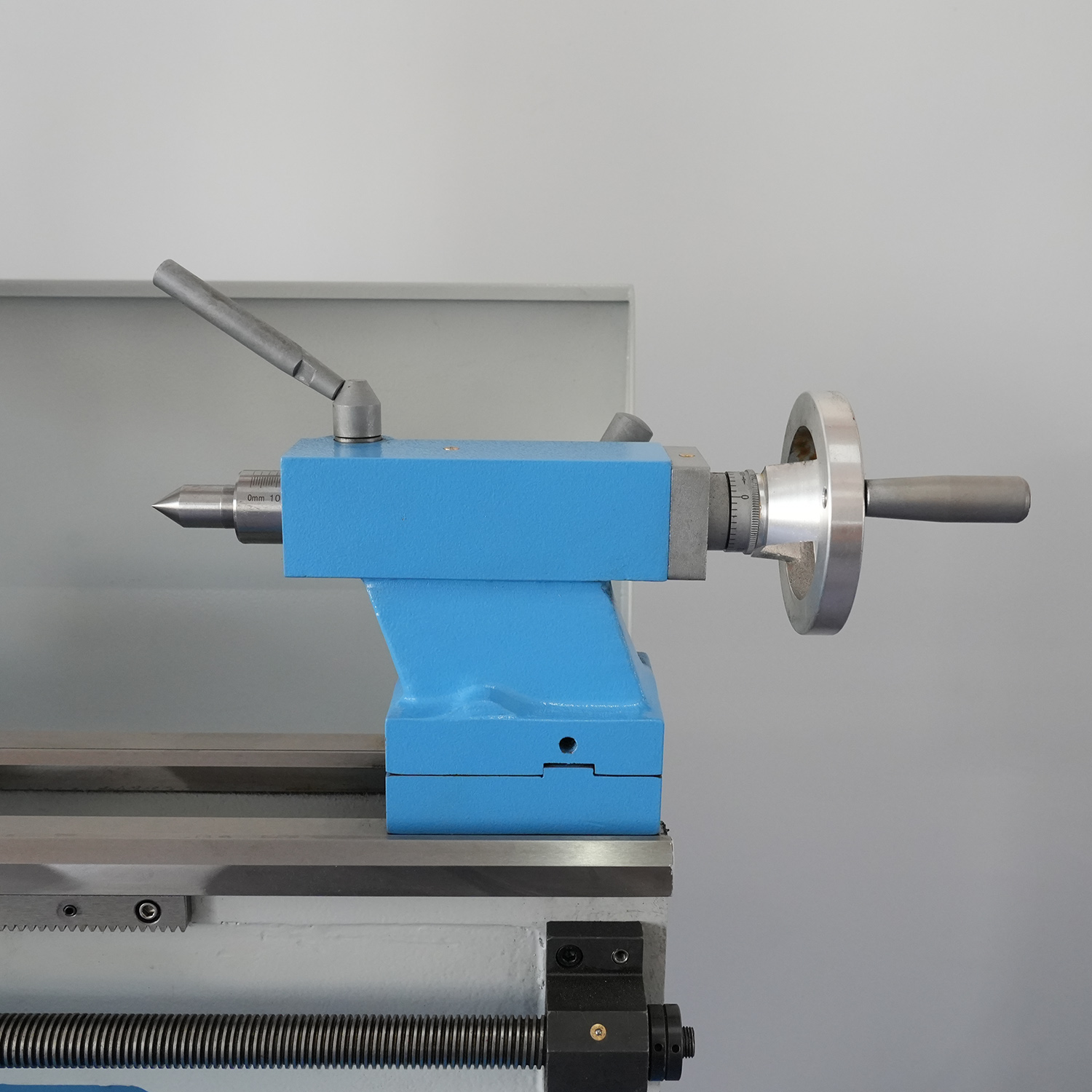

| Tailstock | |
| Tailstock Spindle Travel | 80mm |
| Taper in Tailstock Spindle | MT2 |
| Miscellaneous | |
| Main Motor | 750W |
| Dimension: | 1250mm |
| Length | |
| Width | 1000mm |
| Height | 560mm |
| Weight | 180KGS |
 |  |  |
 |  |  |
 |  |  |
